x제품 상세 정보
| Laser type | MOPA pulsed fiber laser | Machine Name | MOPA pulse laser cleaning machine |
|---|---|---|---|
| Average power | ≥120W | Laser wavelength | 1064nm±10nm |
| Pulse energy | ≥2mJ | Peak power | ≥8kW |
| Beam quality M² | ≤1.6 | Frequency range | 1kHz-4MHz |
| Pulse width | 5ns-500ns | Clean output graphic mode | Cross, rectangle, spiral, circle, ring, 0° straight line, 45° straight line, 90° straight line, 135° straight line, straight line rotation |
| Device language | Chinese, English, German, French, Japanese, Korean, Russian, Portuguese, Spanish, Arabic, Thai, Vietnamese 12 languages |
제품 설명

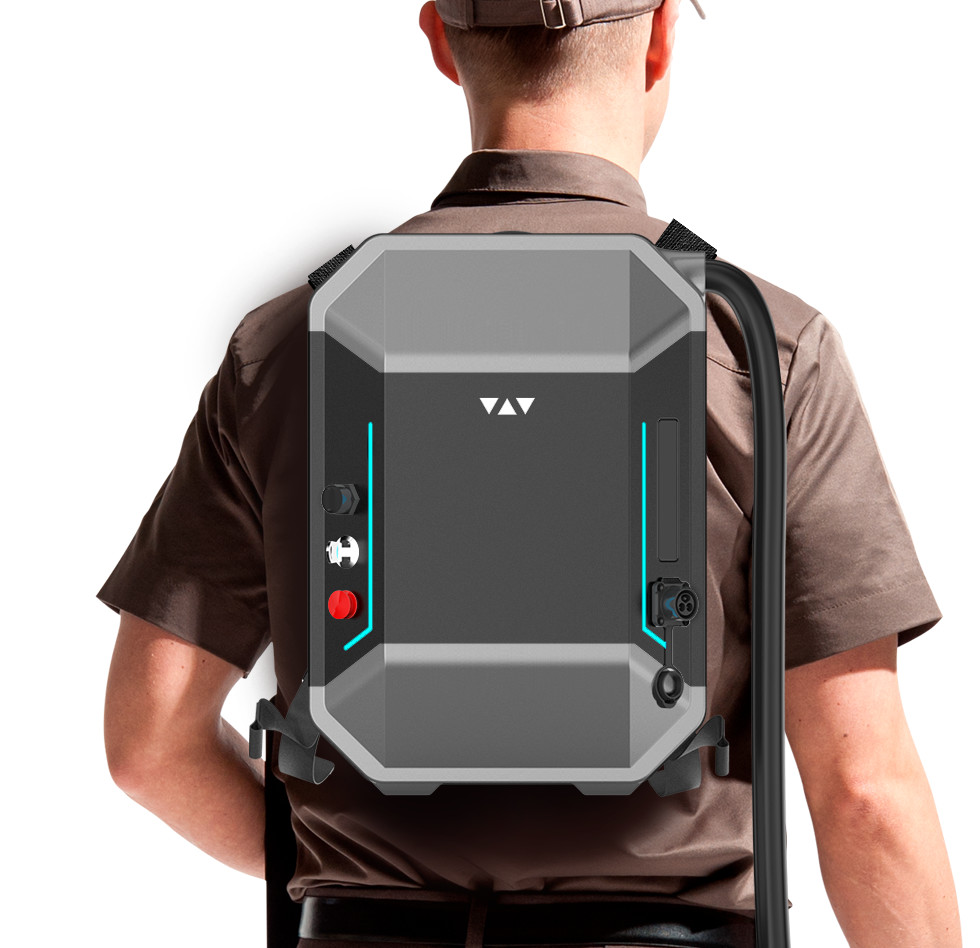

Product name: MOPA pulse laser cleaning machine
(3 in 1 MOPA pulse laser cleaning marking deep engraving three-in-one machine)
Product features:
1. Lightweight and small size, the whole machine is about 10KG
2. Unique appearance design, compact and beautiful
3. Modular design, plug and play, easy maintenance
4. Three-in-one function, cleaning + marking + deep engraving (marking and deep engraving are optional), one-button easy switching
5. Wide voltage, 110V-220V can be universal used
6. Wide application, suitable for different materials
7. 10 kinds of cleaning spot patterns are optional

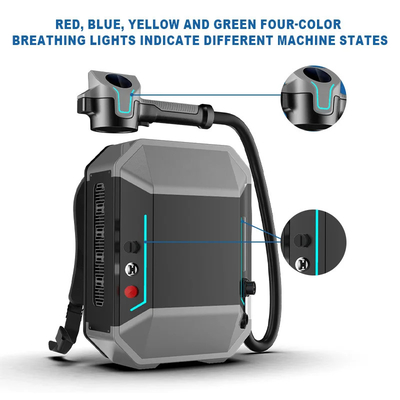

8. Red, blue, yellow and green four-color breathing lights indicate different machine states
9. Parameters can be adjusted through APP terminal, output screen, 485 protocol control
10. The battery is removable and can also be plugged in directly to use the machine
Product operating environment
|
Supply voltage |
100VAC-240VAC |
|
Working ambient humidity |
≤95%RH |
|
Power supply frequency |
50Hz/60Hz |
Storage temperature |
- 20 ℃ to 60 ℃ |
|
|
Power supply |
≥500W |
Cooling method |
Air cooling |
|
|
Working ambient temperature |
0 ℃ and 40 ℃ |
Equipment protection level |
IP53 |
Product Structure
The equipment is mainly composed of three parts: laser system, output system and control system. Among them, the main engine as the core component, integrated laser, power supply and cooling device, responsible for generating and emitting laser.
Output system for the user operation terminal, equipped with laser output hand, easy for users to carry out specific operations.
The control system is composed of hardware and software such as control board card, handheld tablet and output head button, which is used to realize the comprehensive operation and management of the equipment.
Product Configuration List
|
Main machine (including lithium battery) |
1 set |
|
Marking/Deep Engraving fixed-focus bracket |
1 pieces |
|
Hand-held control tablet |
1 unit |
External Communication Control Connector |
1 piece |
|
|
Goggles (OD7+@1064) |
1 pair |
External Interlock Control Connector |
1 piece |
|
|
Protective lenses |
2 pieces |
Portable Packaging Box |
1 piece |
|
|
Key for mainframe startup |
2 pieces |
Certificate of conformity |
1 set |
|
|
Power cord (adapter) |
1 set |
Instruction Manual |
1 set |
|
|
Charger |
1 set |
Warranty card |
1 set |
|
|
Marking/Deep Engraving Control Wire |
1 piece |
|
|
